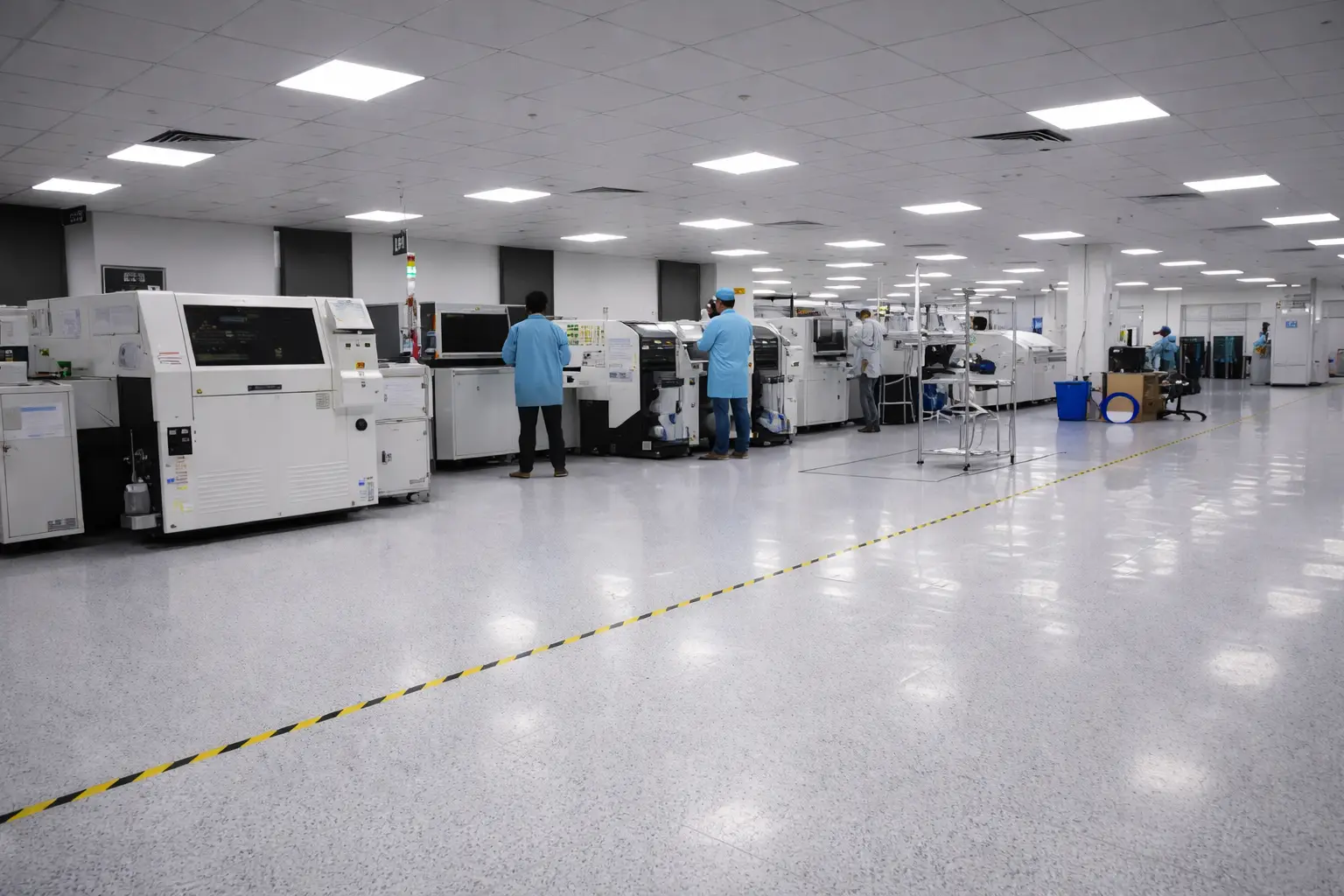

SMT Features
- Dual line capable of running top and bottom side of PCB at the same time or 2 different products together.

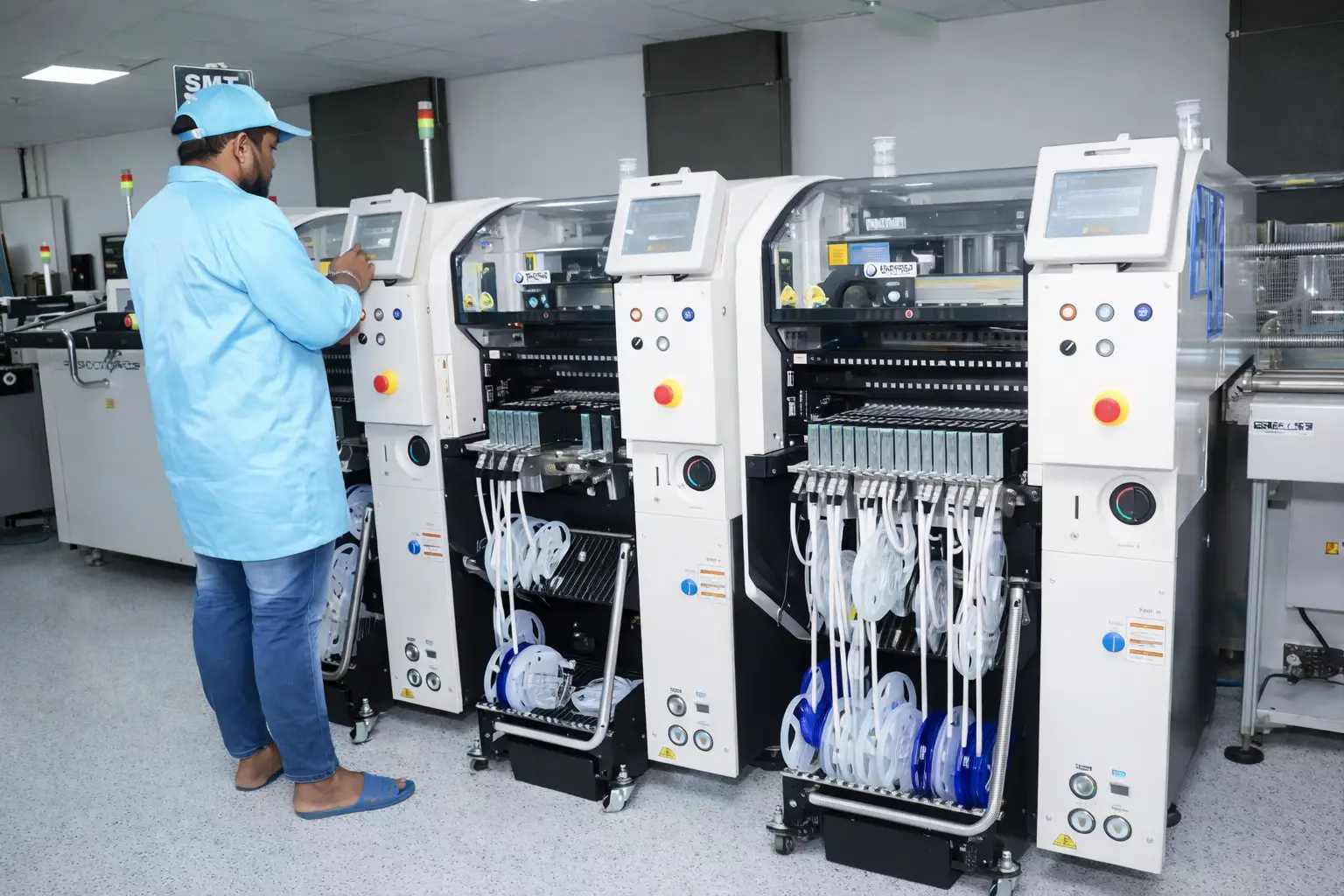

- 4 Mounters with 265K CPH installed capacity.

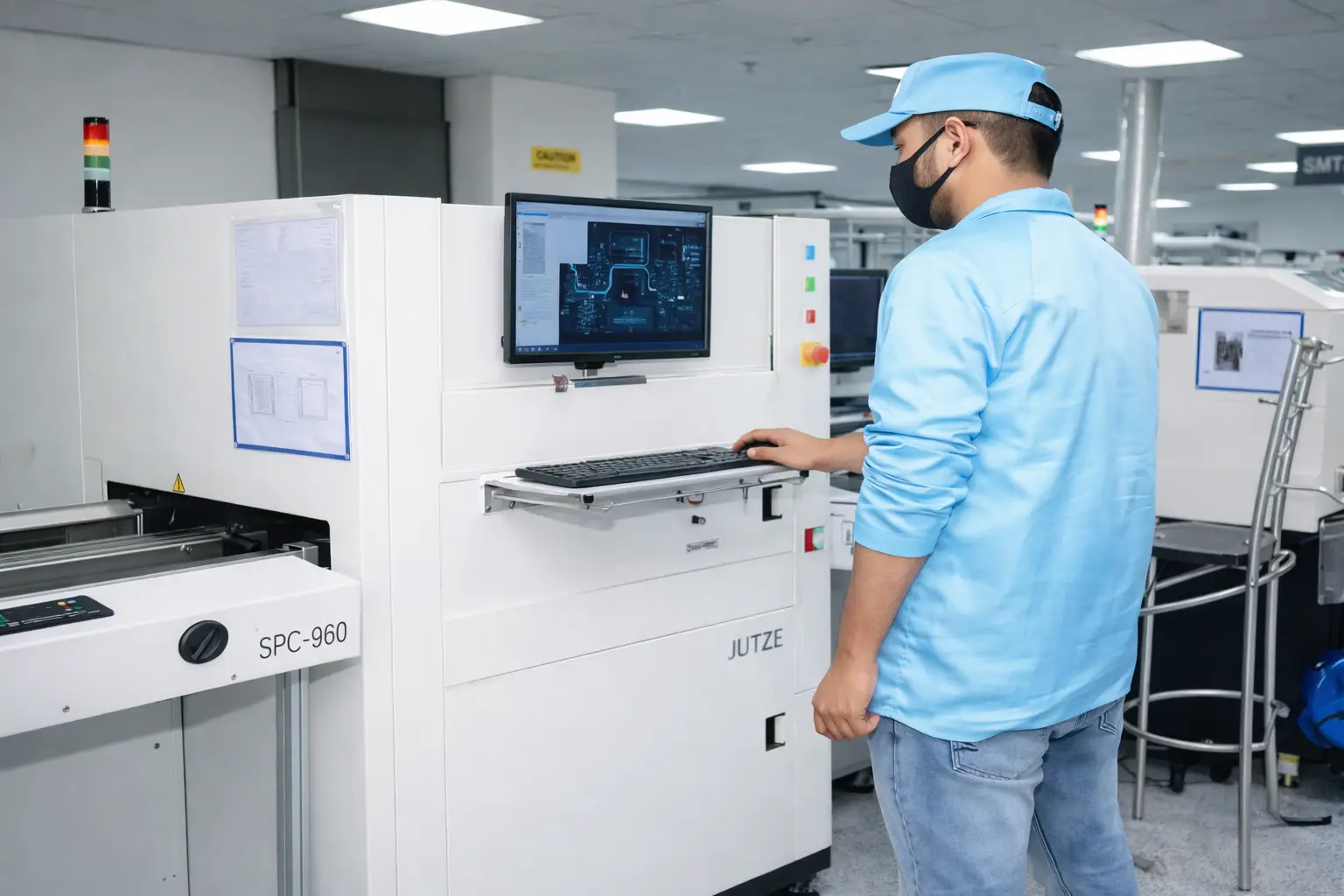

- 3D-SPI and pre and post 2D-AOI. Router for de-paneling.
- Installed with second generation Pana-Cim software for traceability and production analysis.
- First company to have 2nd Generation Pana Cim software.
- Component placement capability from 0201 mm till 120×90×32 mm with 25 micron accuracy.
- Printer with printing accuracy of 5 micron.

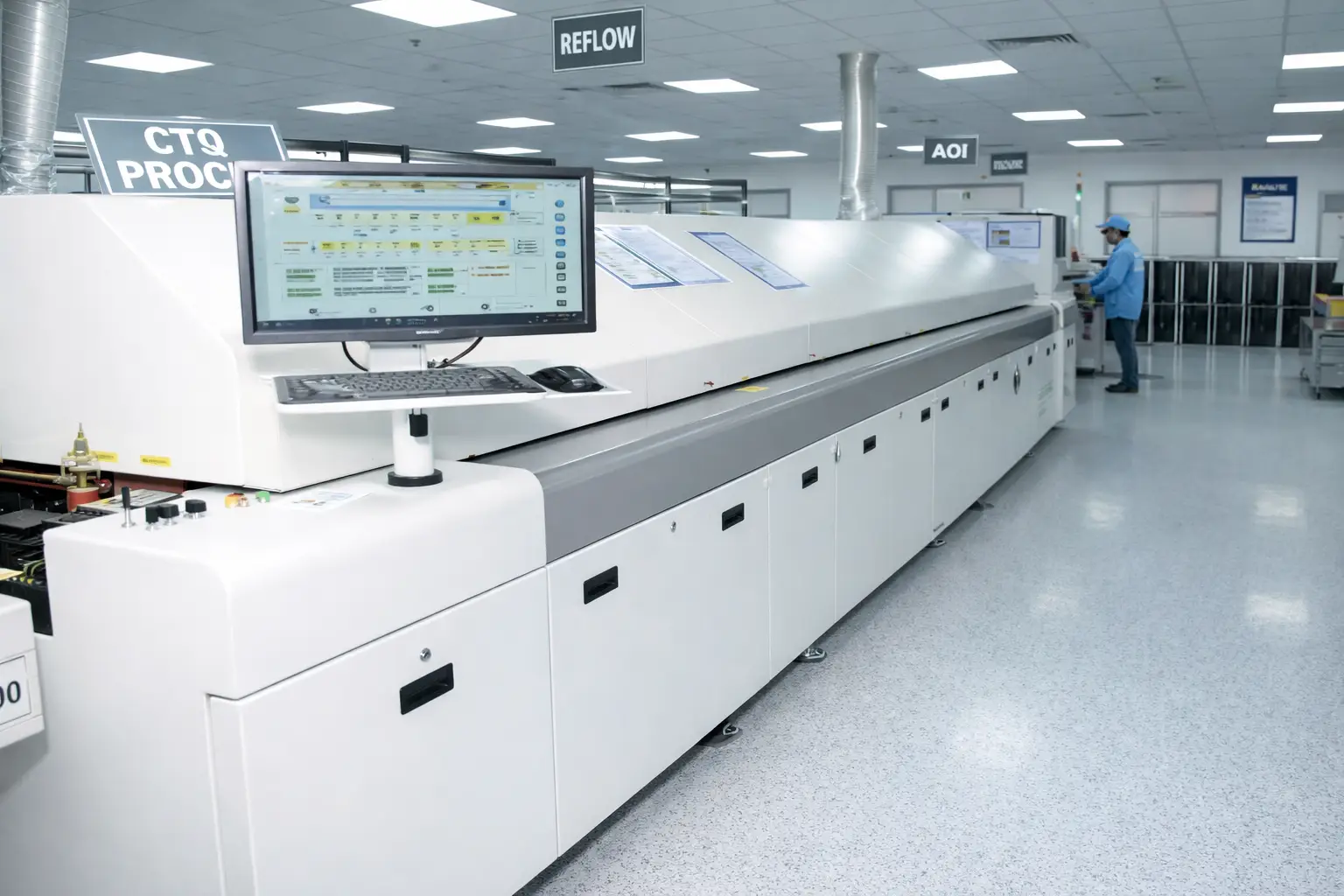

- N2 ready 10 zone reflow oven.
- Capable of manufacturing the latest industry products.
- Test line available for any PCBA testing.
MI Features
Configuration

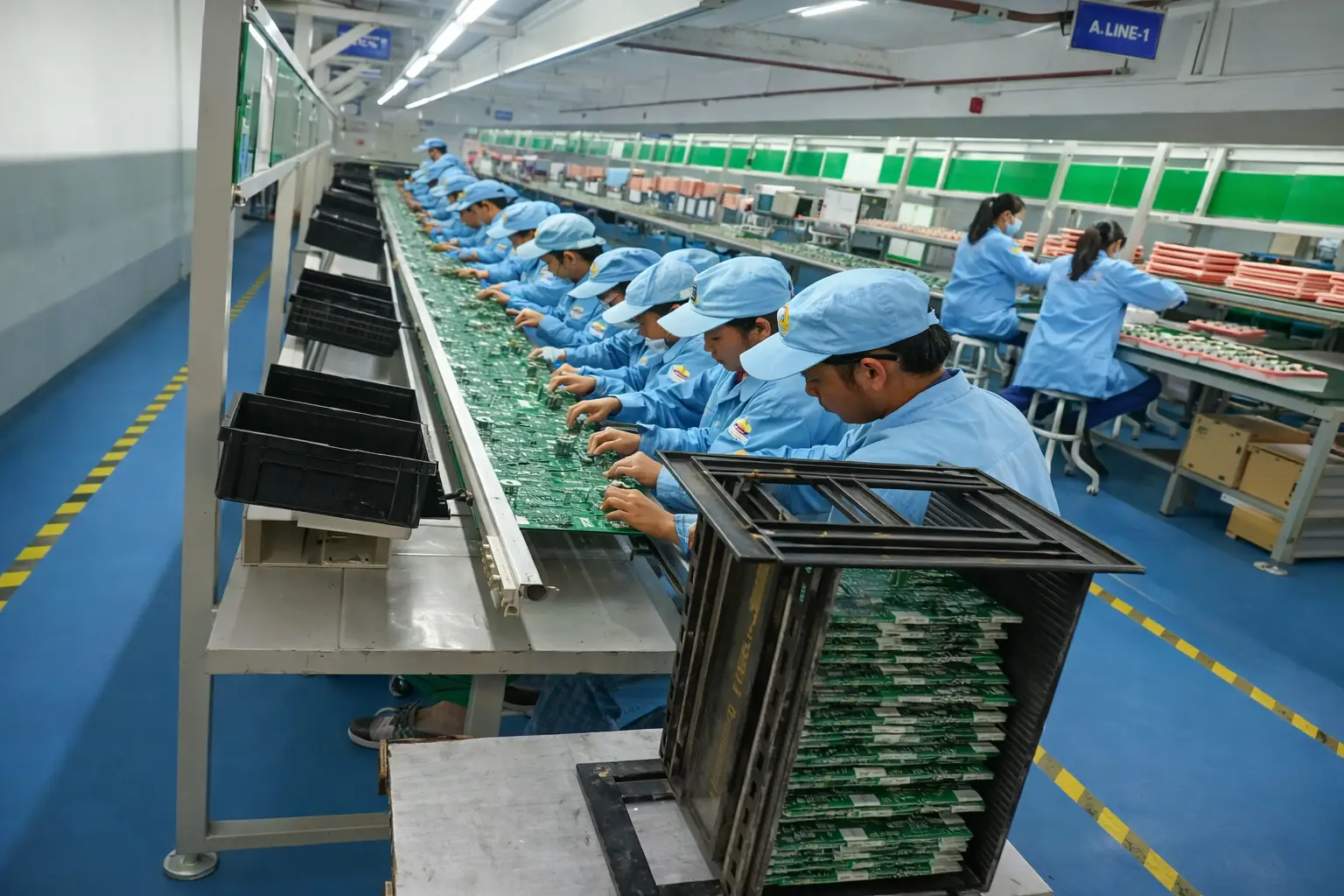

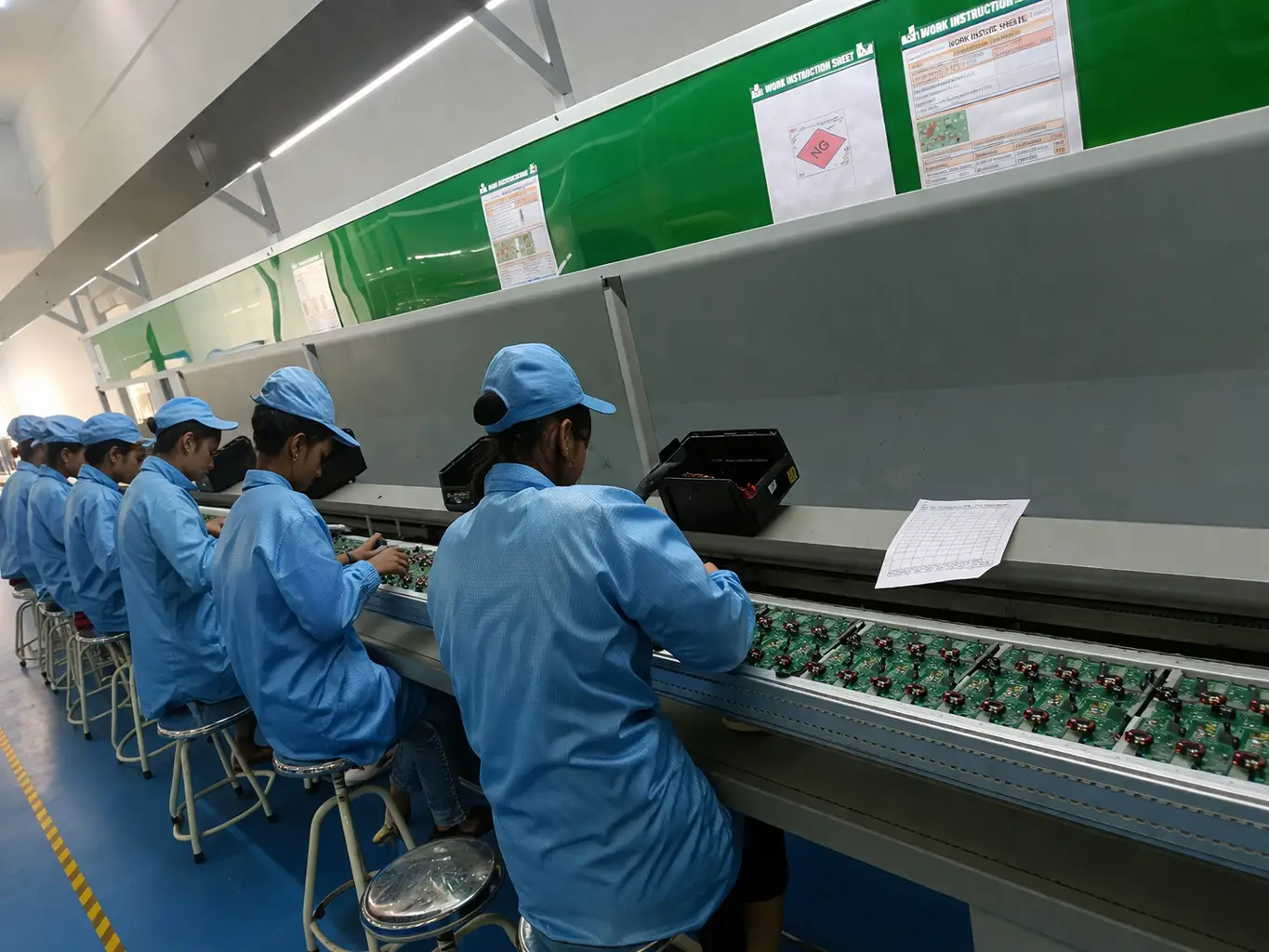

- Single line automatic conveyor running for Mounting (8Mtr.) ,Touch up Line (12Mtr.) and Final Assembly(28Mtr.) which capable to
meet all the requirements with high capacity..

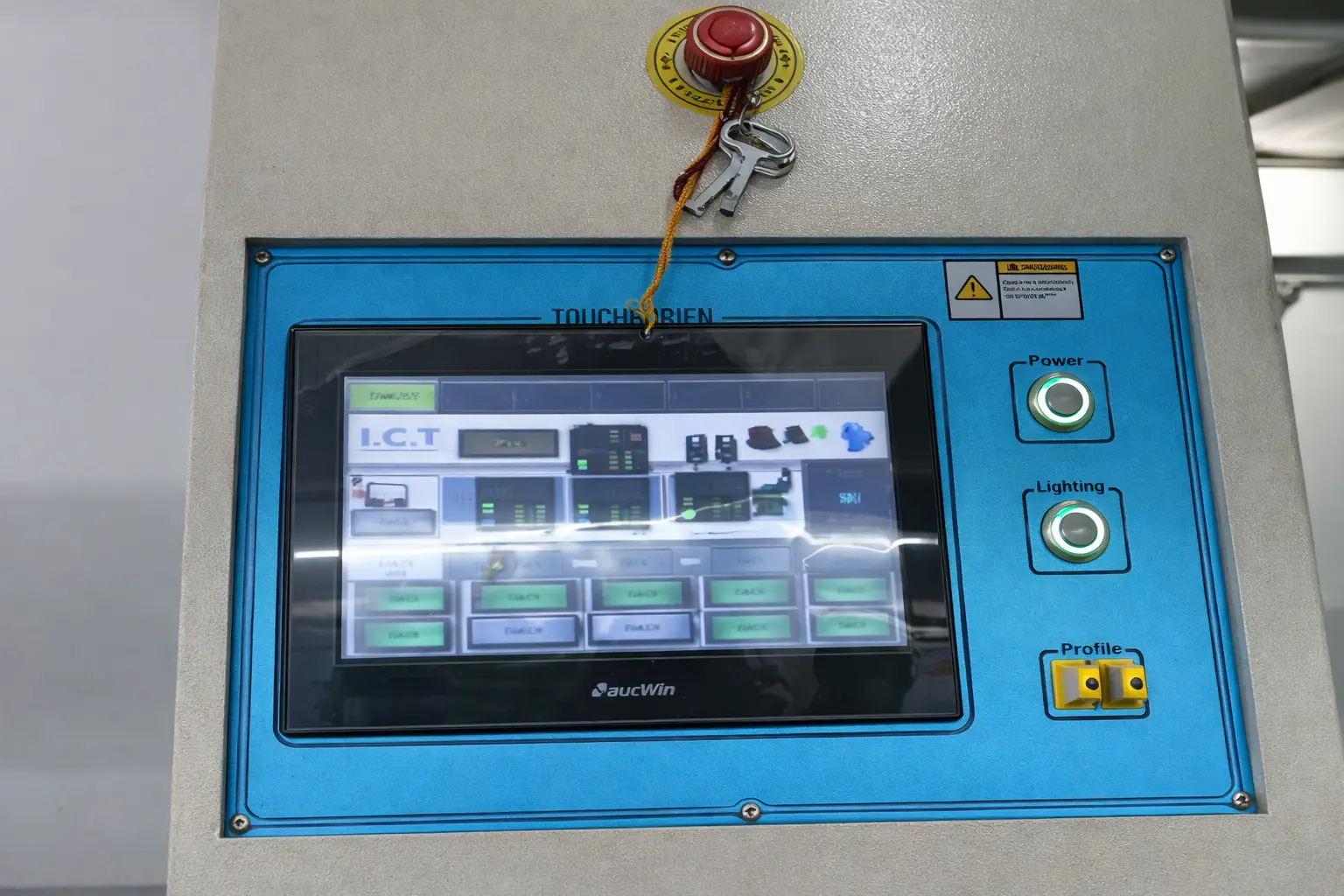

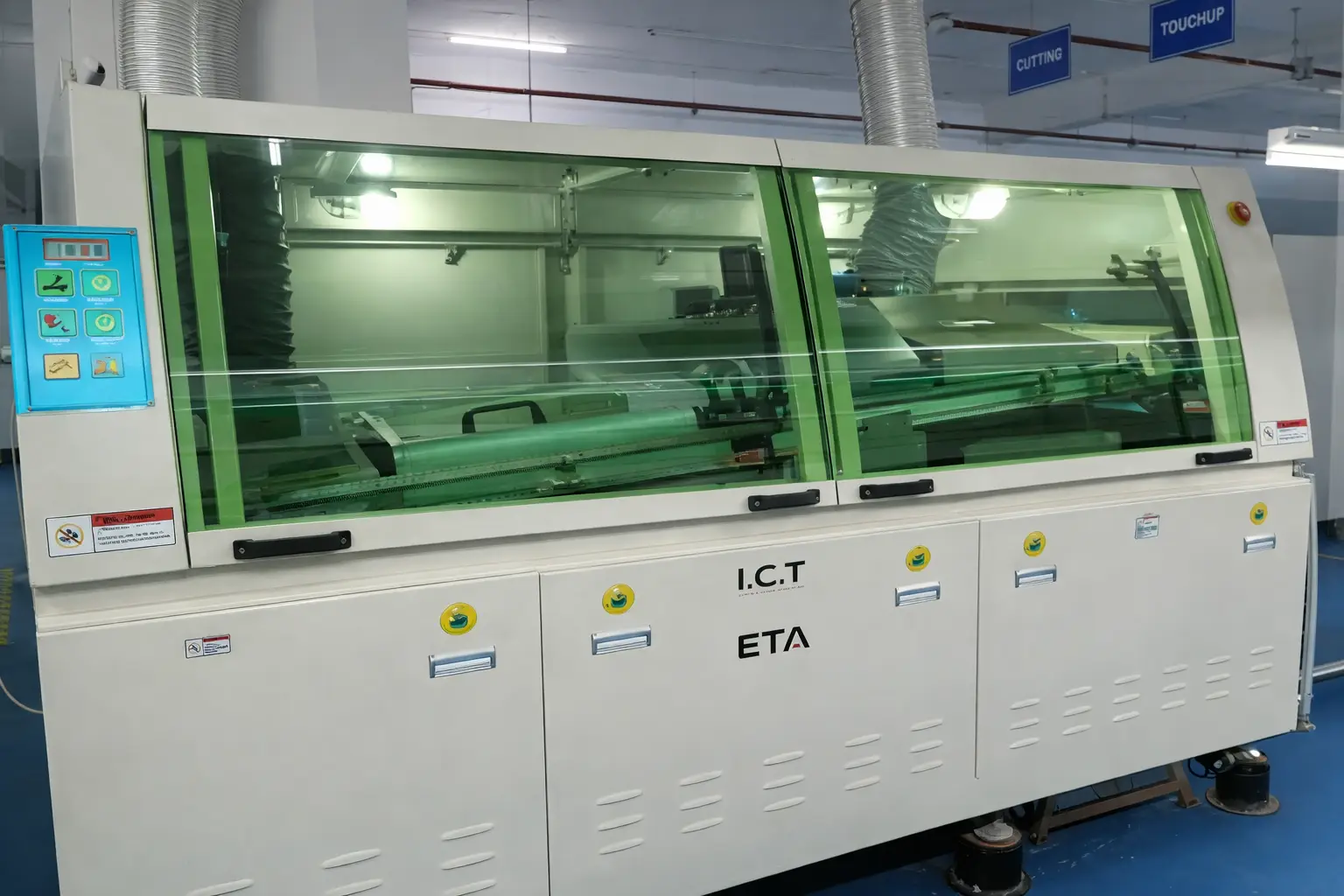

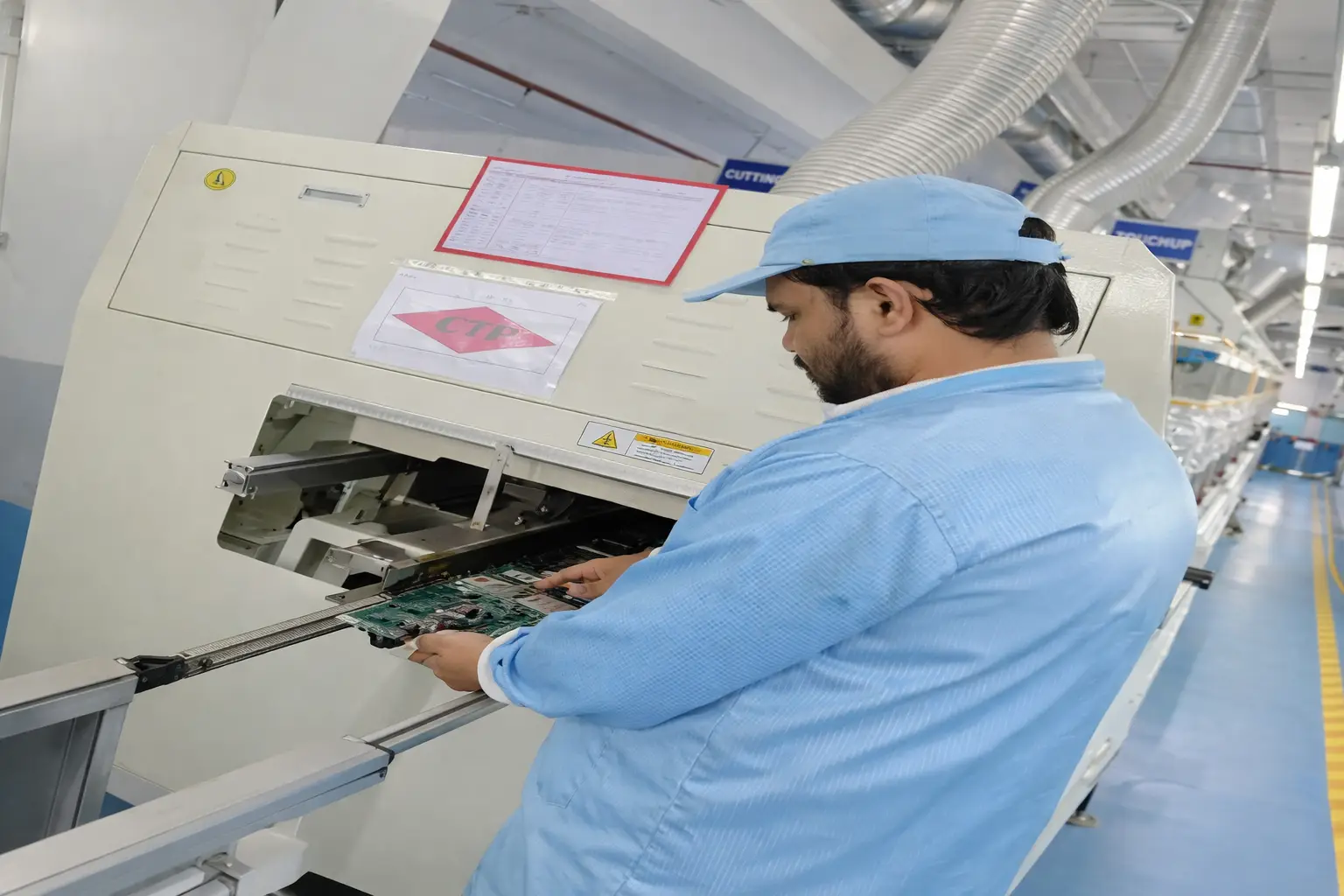

- Latest wave soldering machine(WSM) ETA -ICT (Intercontinental-Model-W3) located at MI Floor with extra advance features as .
- We Have a good working environment and good floor with Centralize cooling system with fresh Air.
- We have skilled manpower with specified knowledge about Preforming, Mounting ,Touchup Visual, WSM, Final assembly and
Packing..
- Capable of Manufacturing the latest Product available in Industry .Test Line available for the testing of Various product as Like
various type of Energy Meter, CCTV Cameras, Remote PCBA, Control Cards ,Railway and Metro Cards etc.

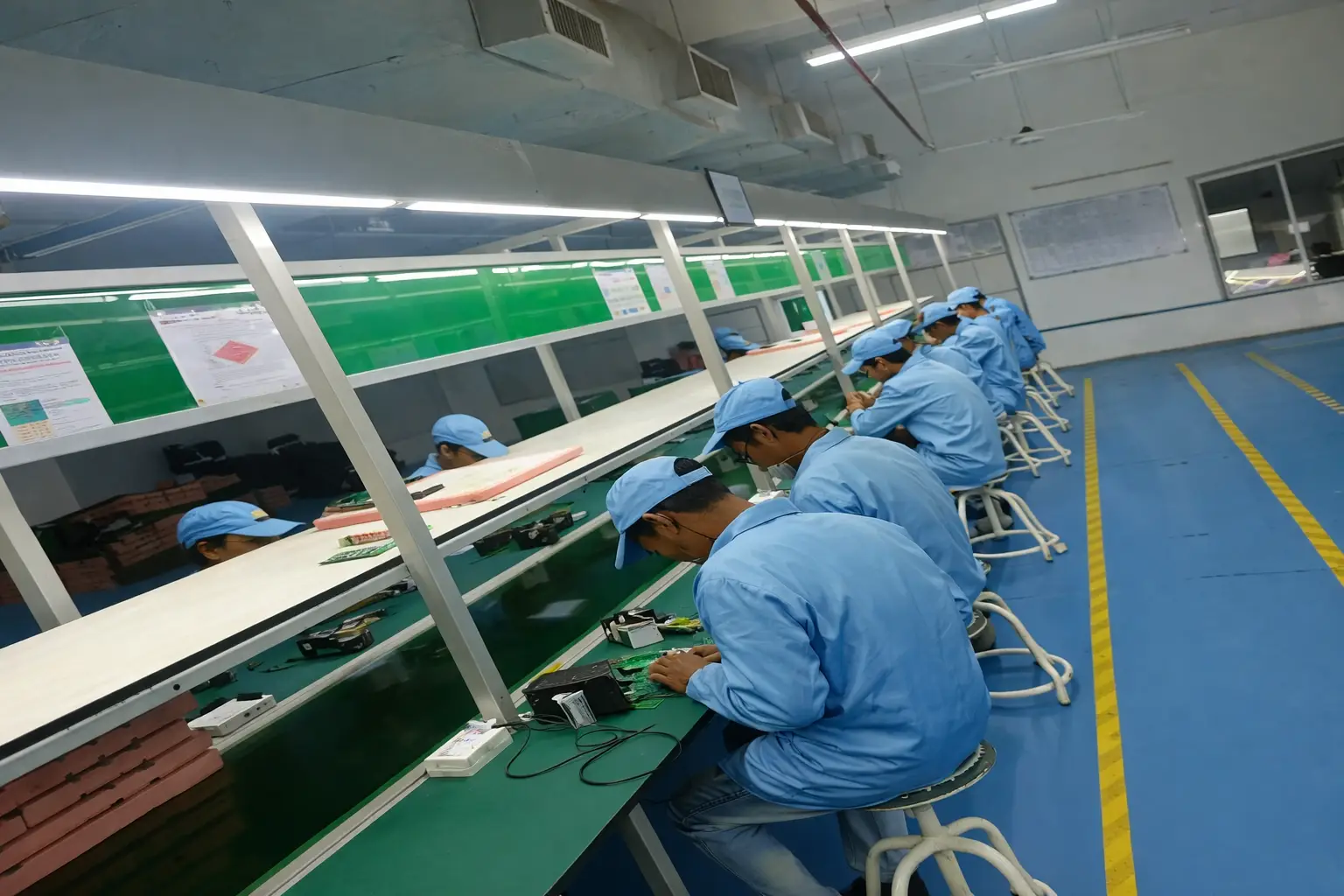

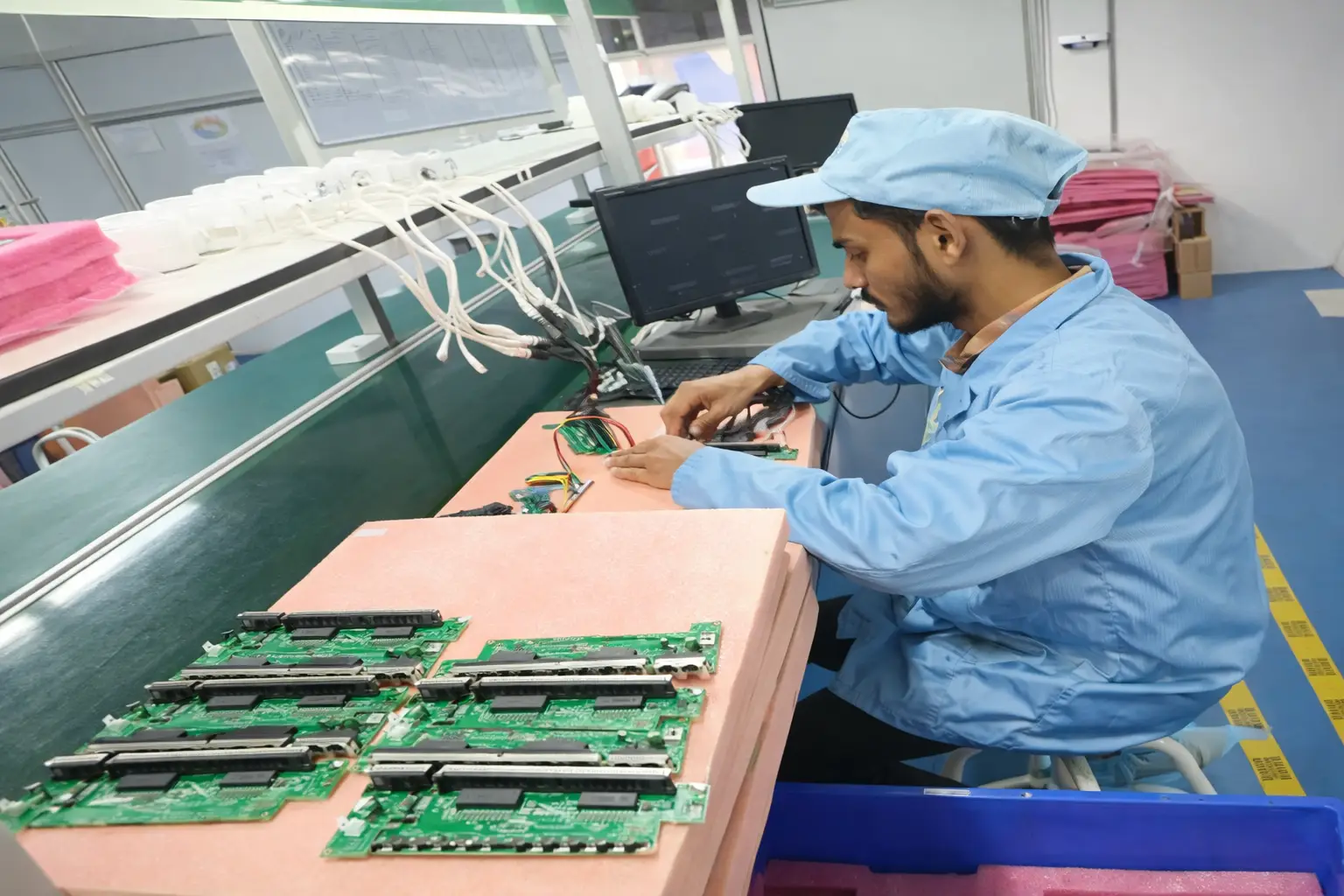

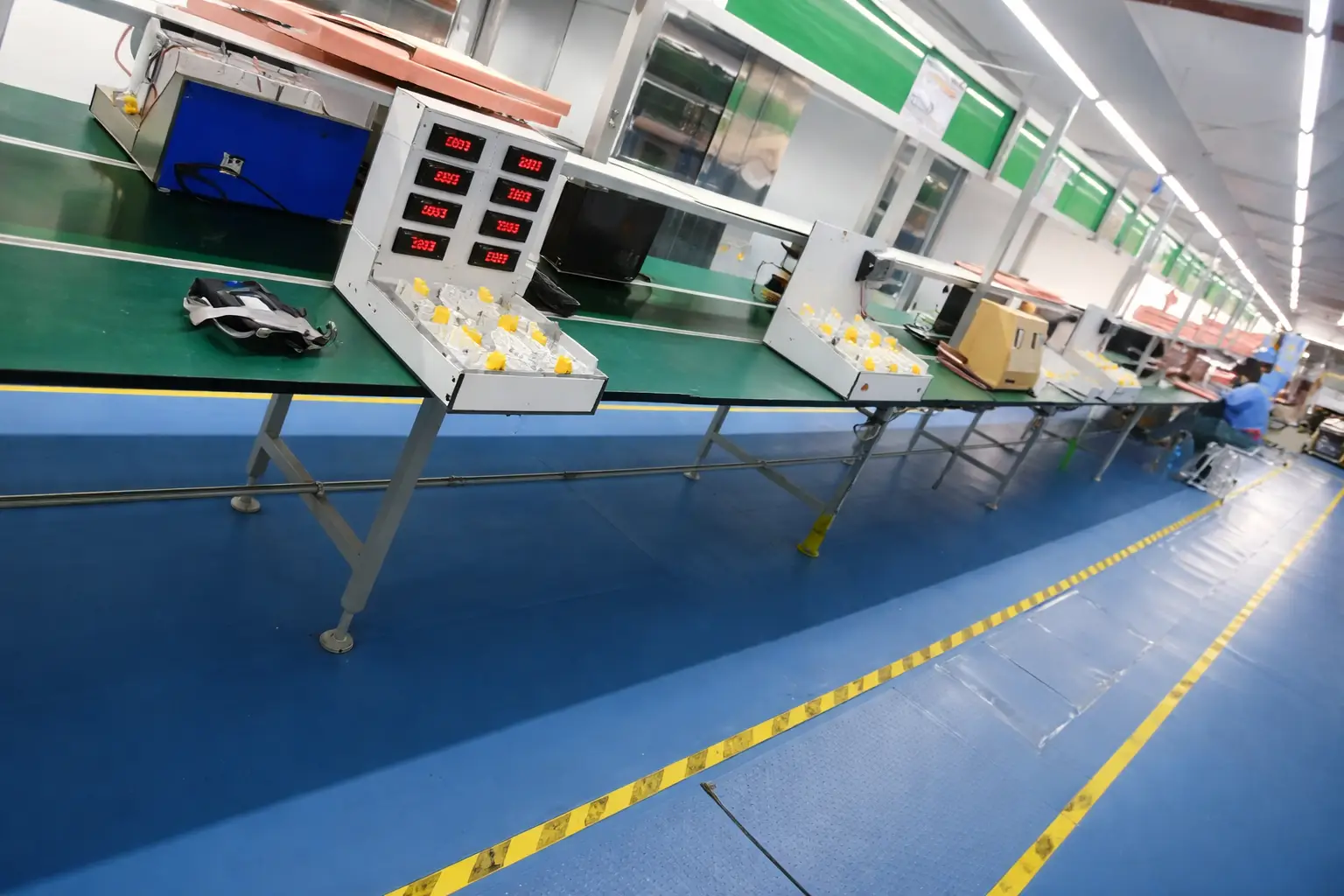

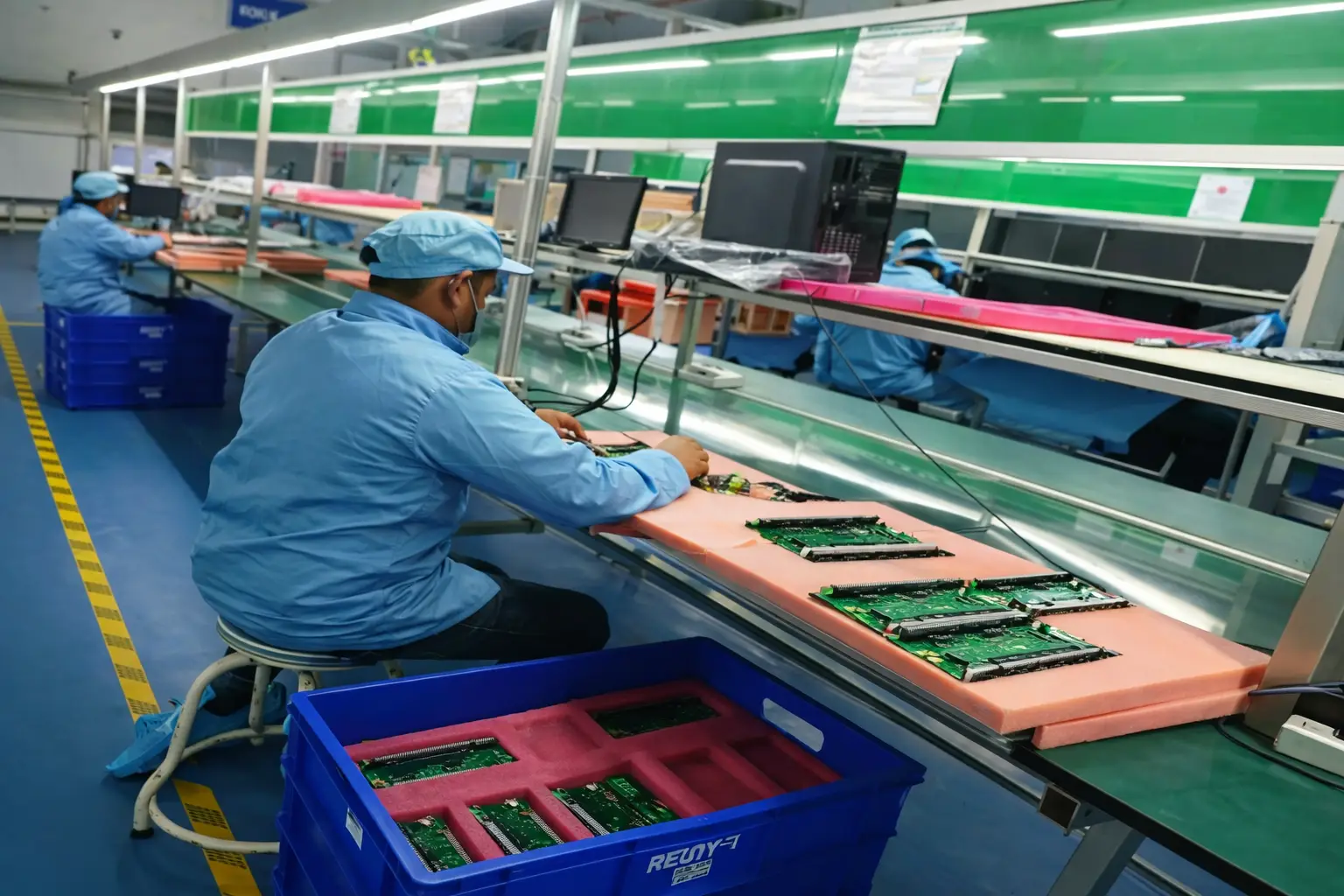

Test Line Photographs

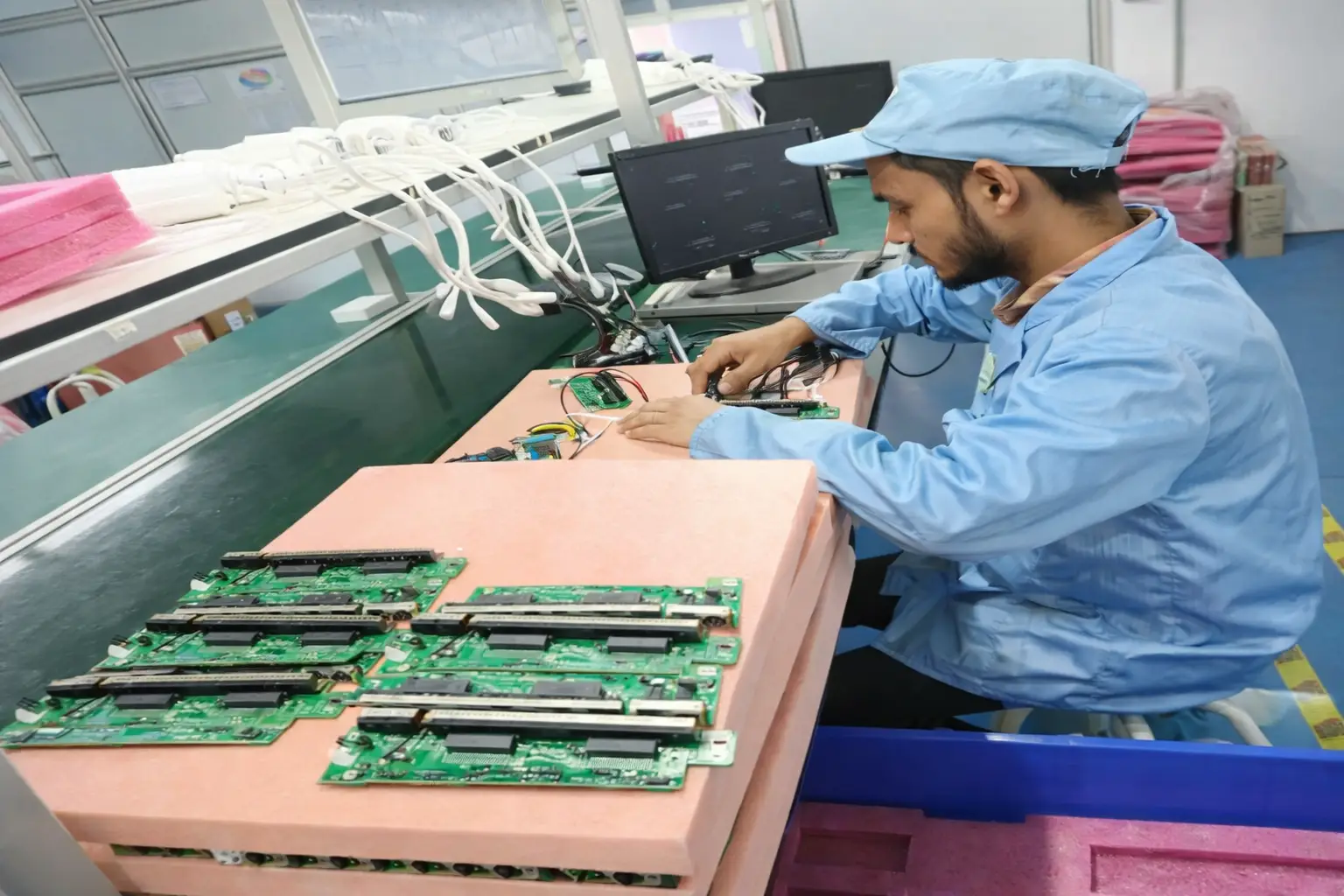

Testing Equipment

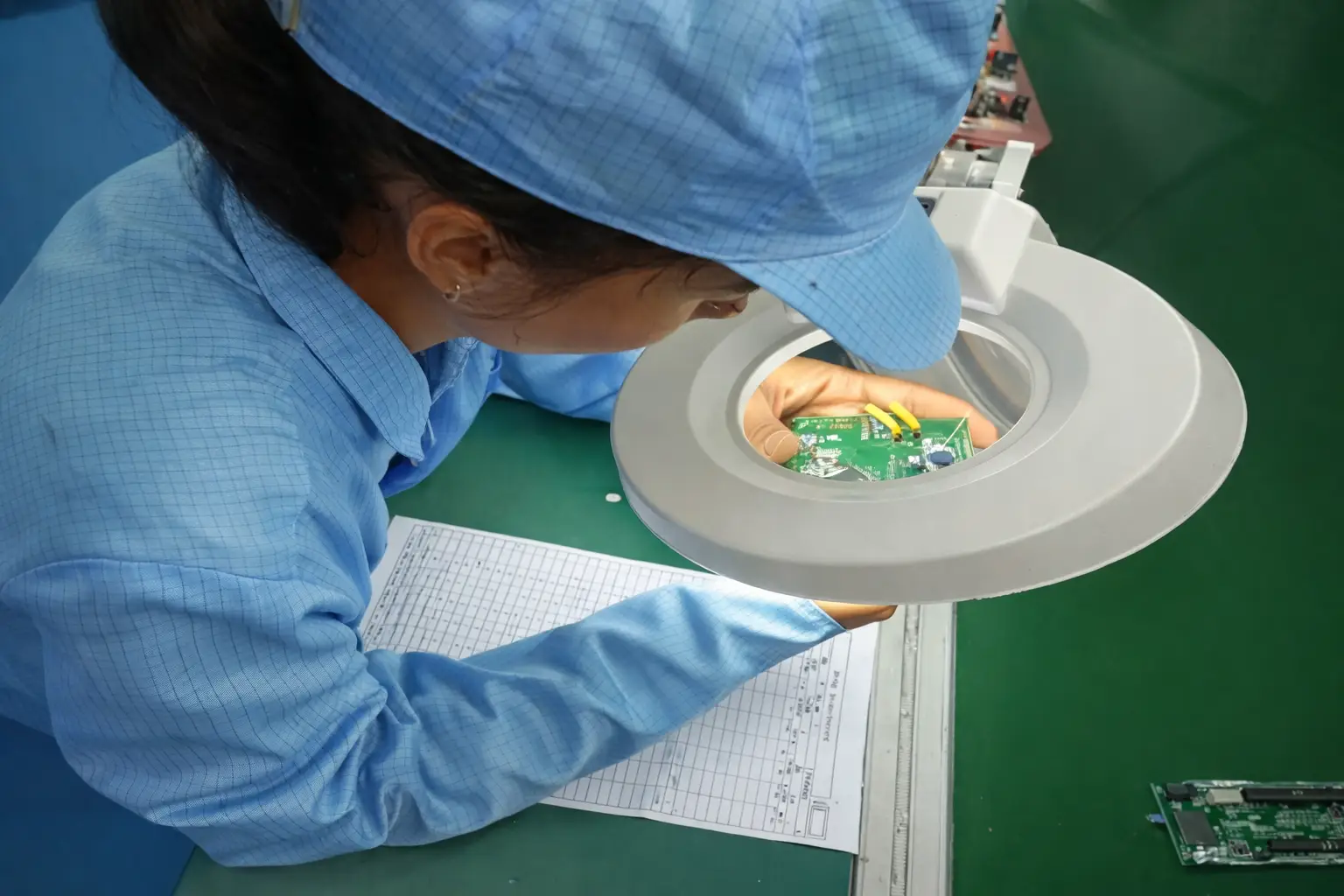

Inspection Process
Quality Testing
